ARDEP Power IO Shield

Contents:

The Power IO Shield extends the ARDEP platform’s power capabilities. It is intended for switching high-power loads and being triggered by 12V+ signal levels.

The shield offers six 48V-capable inputs and 6 high-side output drivers capable of driving 3A+ each and a total current of 10A for supply voltages of up to 48V.

../../../../_images/3d_view1.png

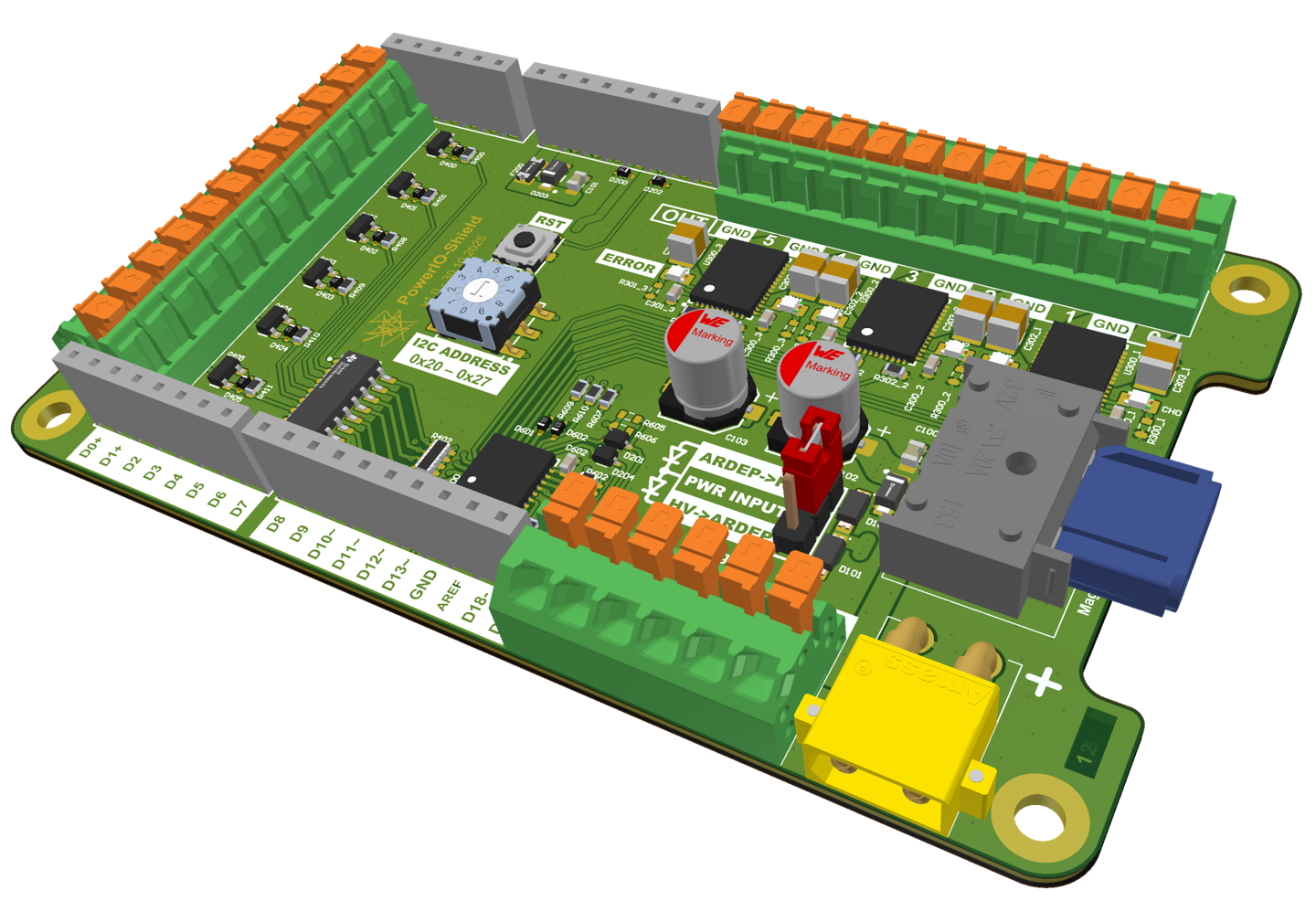

ARDEP Power IO Shield

../../../../_images/top_view.png

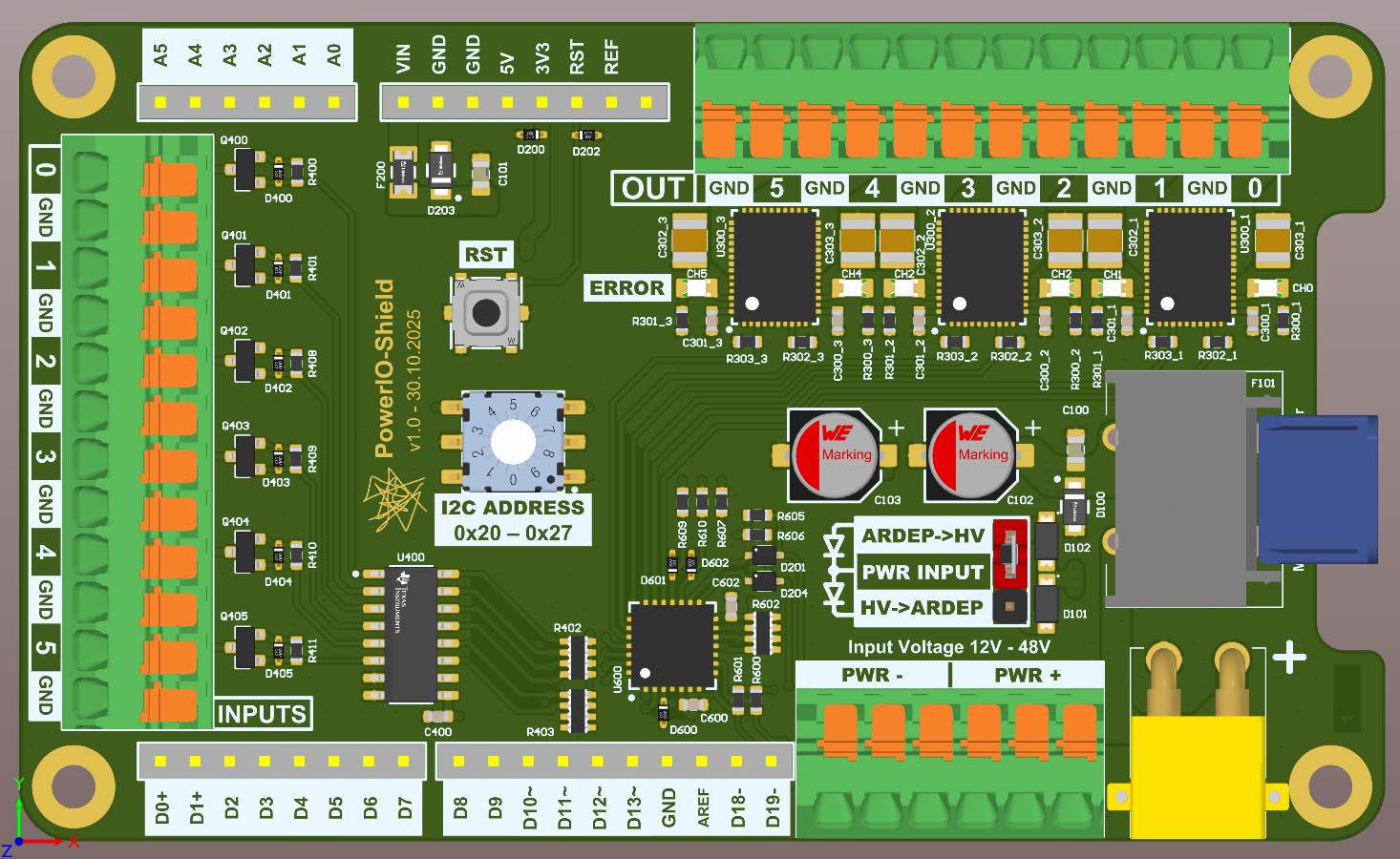

Power IO Shield Top View

../../../../_images/bottom_view.png

Power IO Shield Bottom View
